Cryorig H5 Ultimate CPU Cooler Review

Admin Cooling 239


We reviewed the Cryorig R1 Ultimate CPU Cooler last month and really liked it. In fact, we gave it a Recommended award and 4.5 out of 5. It’s Cryorig’s flagship cooler, so it should have been good, and it is. Now we have a look at the Cryorig H5 Ultimate CPU Cooler, a slightly different type of cooler to the R1 but still boasting rich features such as Hive Fin, a Jet Fin and turbulence reduction system that we are assuming will help a lot!

But seriously, if you want to be impressed by the stack of design features the H5 carries, have a look at their H5 micro-site. In the meantime, what do we think? If it lives up to the hype, it should be a truly amazing cooler. The supporting micro-site also has some superb content, so check it out. On with the show.

Socket compatibilityIntel LGA2011/v3, LGA1156, LGA1155, LGA1151, LGA1150, LGA775, LGA1366 & AMD AM2/+, AM3/+, FM1, FM2/+
Dimension (with fan)L110.9 x W143 x H160 ~ 168.3mm ( Fan position adjustable)
Weight (with fan)920 g
Heat pipes6mm heatpipe x 4 units
Copper BaseC1100 Pure copper nickel plated
RAM Height Limit30 ~ 35 mm ( Fan position adjustable )
TDP180 W
Fan DimensionL140 mm x W140 mm x H25.4 mm
Fan Rated Speed700 ~ 1300 RPM ±10 %
Fan Noise Level19 ~ 23 dBA
Fan Air Flow76 CFM
Fan Air Pressure1.44 mmH2O

Product Gallery

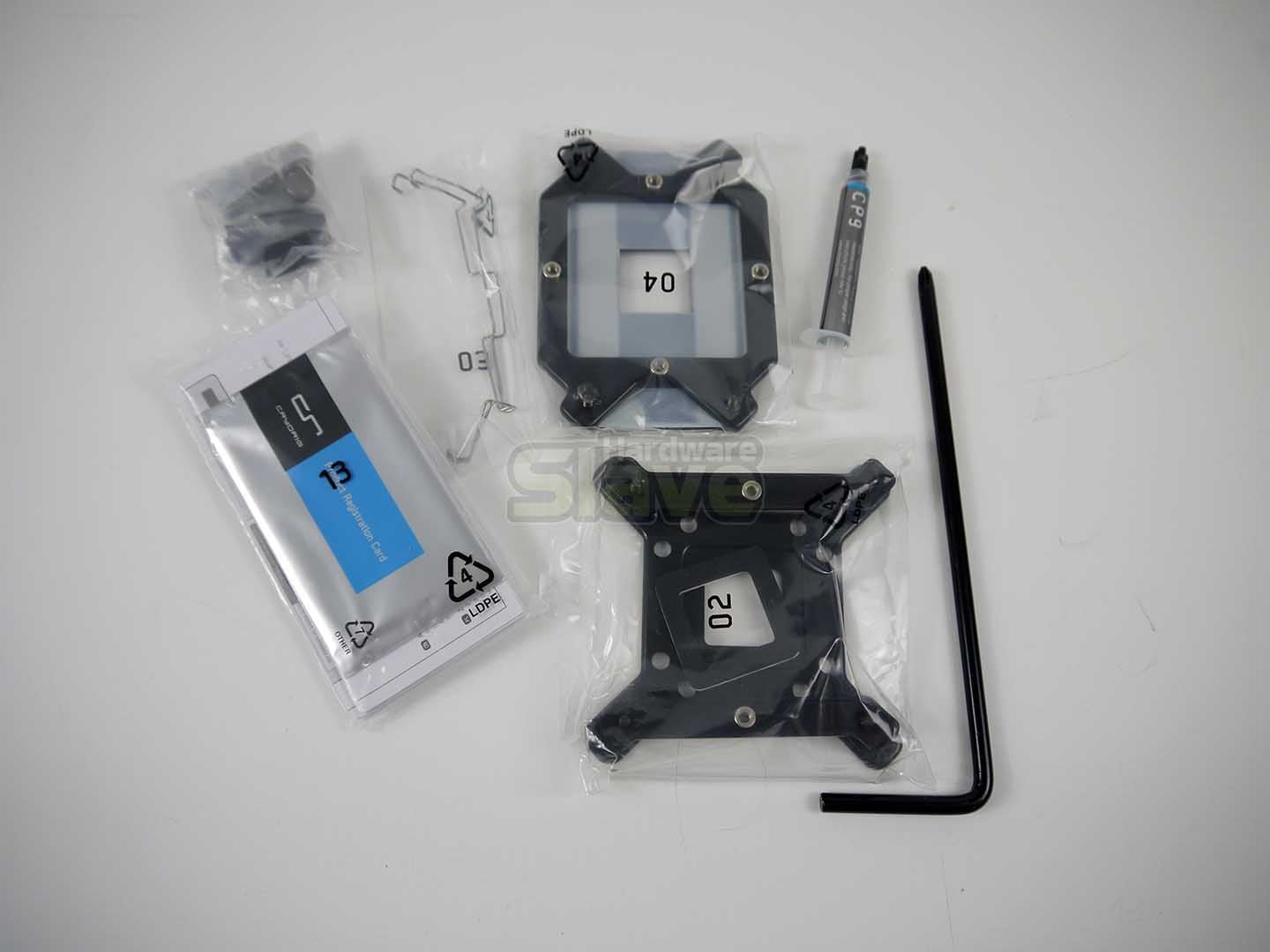

The Cryorig H5 Ultimate comes well packed and thoughtfully protected. A little more premium than the R1, but not my much.  You get a bundle of accessories including thermal paste and a nice black anodised screwdriver.

The H5 uses the same XF140 as the Cryorig R1 Ultimate CPU Cooler which is not a bad thing. The H5 shares many features with the R1, which again, is no bad thing. With a lower sized, TDP and heat pipe count, you are getting the same level of quality from the H5, but with a lower cost and scope than the R1.
